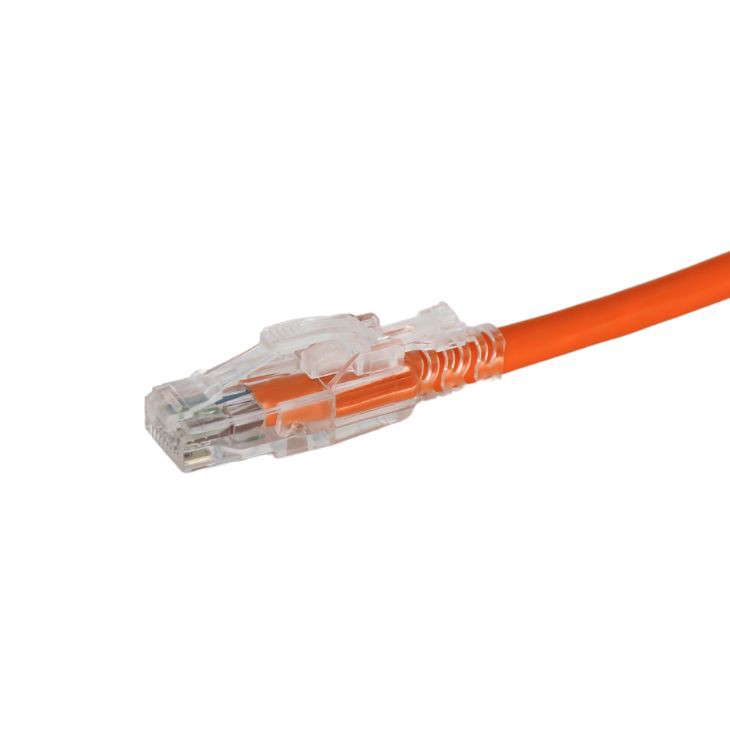

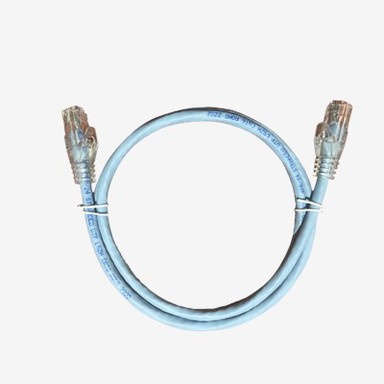

High-Performance Unshielded Twisted Pair Ethernet Cables for Standard Networking Applications
| Model | Length | Conductor | Insulation | Jacket | Impedance | Attenuation | NEXT | Primary Applications |
|---|---|---|---|---|---|---|---|---|
| UTP6-1.0 | 1.0 meter | 4×23AWG BC | HDPE | PVC/LSZH | 100Ω ±15% | ≤19.8dB | ≥44.3dB | Server room connections, short links |
| UTP6-1.5 | 1.5 meters | 4×23AWG BC | HDPE | PVC/LSZH | 100Ω ±15% | ≤20.1dB | ≥44.0dB | Workstation connections, patch panels |
| UTP6-2.0 | 2.0 meters | 4×23AWG BC | HDPE | PVC/LSZH | 100Ω ±15% | ≤20.5dB | ≥43.8dB | Office networking, equipment racks |
| UTP6-3.0 | 3.0 meters | 4×23AWG BC | HDPE | PVC/LSZH | 100Ω ±15% | ≤21.2dB | ≥43.5dB | Conference rooms, longer connections |
| UTP6-5.0 | 5.0 meters | 4×23AWG BC | HDPE | PVC/LSZH | 100Ω ±15% | ≤22.8dB | ≥43.0dB | Cross-room connections, flexible routing |
Ideal for connecting computers, printers, and network equipment in corporate environments with reliable Gigabit Ethernet performance.
Perfect for home offices, gaming setups, and streaming devices requiring stable high-speed internet connections.
Essential for server connections, patch panels, and network equipment in standard data center environments.
Low-latency performance ensures smooth gaming experiences and high-quality video streaming.
Supports 10Gbps data transfer up to 55 meters with 250MHz bandwidth capacity
50μ gold-plated connectors ensure optimal conductivity and corrosion resistance
Superior alien crosstalk performance compared to Cat5e cables
Riser and plenum rated jackets available for safe vertical installations
| Cable Length | Ideal Application | Performance Characteristics | Recommended Environment |
|---|---|---|---|
| 1.0m | Server-to-switch direct connections | Minimal signal loss, optimal for 10Gbps | High-density data center racks |
| 1.5m | Patch panel to network equipment | Excellent performance, flexible routing | Network closets, server rooms |
| 2.0m | Equipment within same rack/enclosure | Balanced performance and flexibility | Enterprise network infrastructure |
| 3.0m | Cross-rack connections | Good for medium-distance runs | Office environments, conference rooms |
| 5.0m | Room-spanning installations | Maximum recommended patch cord length | Flexible office layouts, home networking |
Contact us for competitive pricing, bulk discounts, and custom length requirements
