Integrated 1U Rack-Mountable Distribution Frame for Professional Network Infrastructure
Professional 24-port configuration optimized for standard server racks with efficient space utilization and easy cable management
Cat5e UTPColor-coded 110-style punch-down blocks with numbered ports for quick and error-free installation
Supports 1Gbps data transmission with 100MHz bandwidth for reliable high-speed networking
High-density configuration ideal for standard server rooms and network closets
Compact design requiring only 1U of rack space for efficient installation
Supports both T568A and T568B wiring standards for flexible installation
Professional punch-down blocks for reliable and secure connections
| Feature | 24-Port Panel | 12-Port Panel | 48-Port Panel | Application Difference |
|---|---|---|---|---|
| Port Density | 24 ports (balanced density) | 12 ports (low density) | 48 ports (high density) | 24-port ideal for standard server rooms |
| Rack Space | 1U height (standard) | 1U height (underutilized) | 1U height (high density) | 24-port maximizes space efficiency |
| Installation Time | Moderate (balanced workload) | Quick (fewer terminations) | Extended (more terminations) | 24-port offers good time efficiency |
| Cable Management | Built-in cable management features | Basic cable routing | Advanced cable management system | 24-port provides adequate organization |
| Cost Effectiveness | Excellent value per port | Higher cost per port | Best value per port | 24-port offers optimal cost balance |
| Scalability | Good for medium-sized networks | Limited expansion capability | Excellent for large networks | 24-port suitable for growing networks |
| Application Scope | Office buildings, schools, medium businesses | Small offices, retail stores | Data centers, large enterprises | 24-port versatile for most applications |
Ideal for corporate office buildings requiring 24-port connectivity for workstations, phones, and network equipment in standard server rooms.
Perfect for schools, universities, and training centers needing reliable 24-port distribution for classrooms and computer labs.
Suited for hospitals and clinics where 24-port configuration meets the connectivity needs for medical equipment and administrative systems.
Excellent for shopping centers and commercial spaces requiring organized 24-port distribution for POS systems and security infrastructure.
Supports 1Gbps data transmission with 100MHz bandwidth for reliable network performance
Color-coded punch-down blocks and numbered ports for quick and professional installation
24-port configuration offers excellent value and performance for medium-sized networks
Steel chassis and high-quality materials ensure long-term reliability in demanding environments
| Parameter | Specification | Standard |
|---|---|---|
| Compatibility | Cat5e UTP cables | TIA/EIA-568-B.2 |
| Number of Ports | 24 ports | High-Density Design |
| Bandwidth | 100MHz | ISO/IEC 11801 |
| Data Rate | 1000Mbps (1Gbps) | IEEE 802.3ab |
| Mounting | 19-inch rack mount (1U height) | Industry Standard |
| Termination Type | 110-style punch-down | Professional Grade |
| Port Spacing | Standard RJ45 port spacing | Compatible with all patch cables |
| Insertion Loss | ≤0.4dB at 100MHz | Superior Performance |
| Return Loss | ≥20dB at 100MHz | Enhanced Signal Quality |
| Operating Temperature | -40°C to +75°C | Industrial Grade |
Install the 24-port patch panel in a standard 19-inch rack using provided mounting brackets
Route cables to the patch panel and strip approximately 2.5cm of jacket from each cable

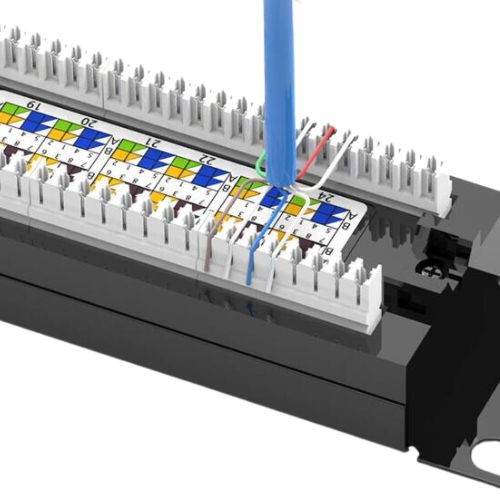

Follow T568A or T568B standard and punch down wires into numbered, color-coded terminals
Test all 24 connections and label each port for proper network documentation
