Five-conductor shielded cables for complex control systems

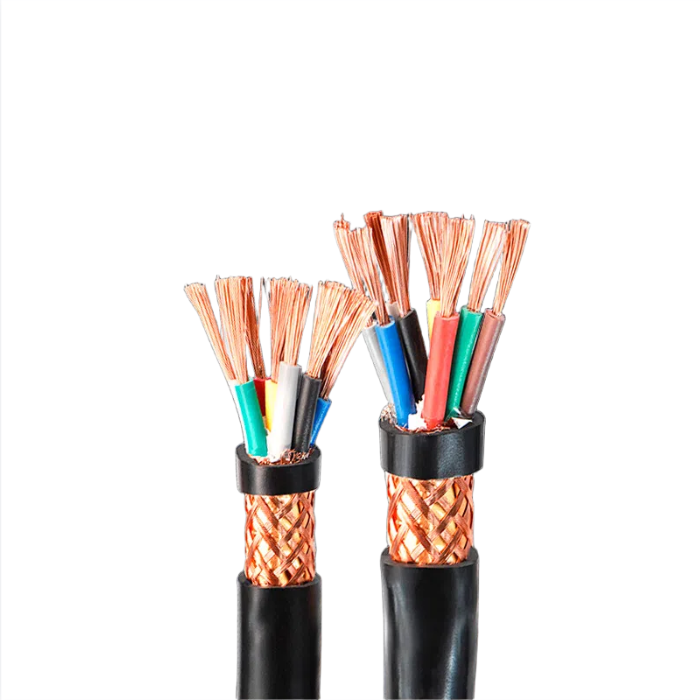

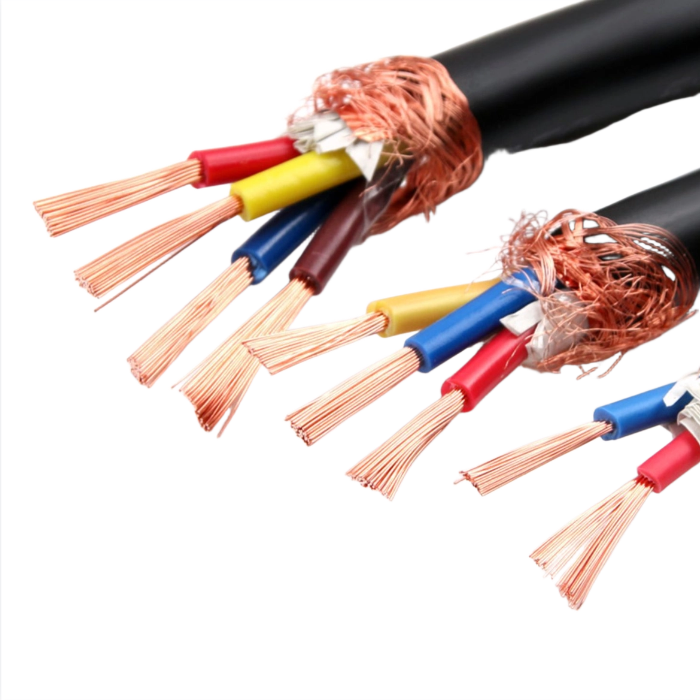

RVVP 5-core shielded cables are designed for applications requiring multiple circuits with EMI protection. Featuring tinned copper braided shielding, these cables ensure interference-free signal transmission in demanding industrial environments.
With five color-coded conductors for easy identification and installation, our RVVP 5-core cables provide reliable performance in complex control systems, automation equipment, and multi-phase power distribution.
| Model | Conductor Structure | Insulation Thickness (mm) | Shielding Coverage | Sheath Thickness (mm) | Avg. Diameter (mm) | Conductor Resistance (Ω/km) |
|---|---|---|---|---|---|---|
| RVVP 5×0.5 | 16/0.2 | 0.6 | ≥85% | 0.8 | 7.5 | ≤39.0 |
| RVVP 5×0.75 | 24/0.2 | 0.6 | ≥85% | 0.8 | 8.5 | ≤26.0 |
| RVVP 5×1.0 | 32/0.2 | 0.6 | ≥85% | 0.8 | 9.2 | ≤19.5 |
| RVVP 5×1.5 | 30/0.25 | 0.7 | ≥85% | 1.0 | 10.5 | ≤13.3 |
Note: Standard colors: Brown, Black, Grey, Blue, Green/Yellow. Custom colors available upon request. All products undergo rigorous quality control testing to ensure compliance with international standards. Specifications may vary slightly based on manufacturing standards.
