Professional-grade shielded Ethernet cables with superior EMI protection for demanding environments
| Model | Length | Conductor | Shielding Type | Jacket | Impedance | Attenuation | NEXT | Primary Applications |
|---|---|---|---|---|---|---|---|---|
| STP5E-1.0 | 1.0 meter | 4×24AWG BC | Foil + Braid | PVC | 100Ω ±15% | ≤21.0dB | ≥36.0dB | Server rooms, data centers |
| STP5E-1.5 | 1.5 meters | 4×24AWG BC | Foil + Braid | PVC | 100Ω ±15% | ≤21.0dB | ≥36.0dB | Network racks, patch panels |
| STP5E-2.0 | 2.0 meters | 4×24AWG BC | Foil + Braid | PVC | 100Ω ±15% | ≤21.0dB | ≥36.0dB | Industrial controls, office networking |
| STP5E-3.0 | 3.0 meters | 4×24AWG BC | Foil + Braid | PVC | 100Ω ±15% | ≤21.0dB | ≥36.0dB | Factory automation, longer runs |
| STP5E-5.0 | 5.0 meters | 4×24AWG BC | Foil + Braid | PVC | 100Ω ±15% | ≤21.0dB | ≥36.0dB | Cross-building, flexible installations |
Perfect for manufacturing plants with heavy machinery and high EMI interference. Provides stable connectivity in challenging conditions.
Ideal for hospitals and clinics where medical equipment generates electromagnetic interference. Ensures reliable network performance.
Essential for server rooms with high-density equipment. Prevents crosstalk and maintains signal integrity in crowded racks.
Suitable for outdoor or semi-outdoor applications where environmental factors and RF interference are concerns.
Foil + braid combination provides 360° EMI/RFI protection
Supports 1000Mbps data transfer with 100MHz bandwidth

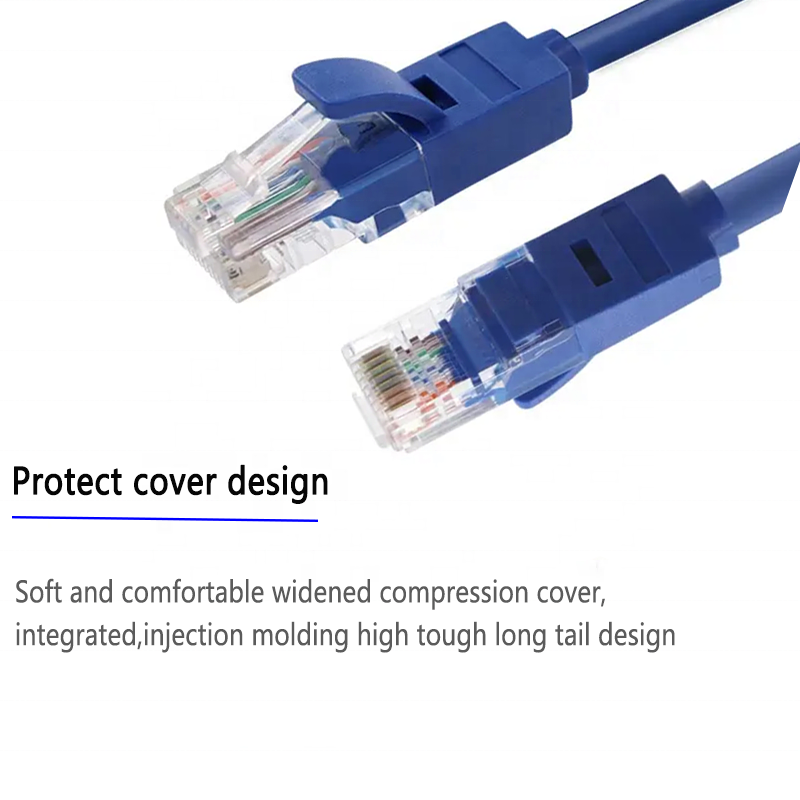

Metal-shielded connectors for end-to-end protection
Riser-rated jacket for vertical installations between floors
| Length | Ideal For | Max Recommended Use | Performance Impact |
|---|---|---|---|
| 1.0m | Server-to-switch connections | Rack installations | Minimal signal loss |
| 1.5m | Patch panel connections | Equipment within same rack | Negligible attenuation |
| 2.0m | Adjacent rack connections | Neighboring equipment | Optimal performance |
| 3.0m | Room-spanning connections | Medium-distance runs | Standard performance |
| 5.0m | Cross-room installations | Maximum patch cord length | Meets Cat5e standards |
Get competitive pricing for bulk orders and custom length requirements
Request Free Sample & Quotation
