Professional STP/FTP Ethernet Jack with Enhanced EMI Protection
Full metal shielding provides superior protection against electromagnetic interference for critical applications
Cat5e STPSupports 1Gbps data transmission with 100MHz bandwidth for high-speed networking requirements
Integrated grounding system and color-coded wiring for reliable and secure connections

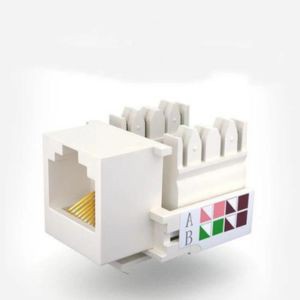

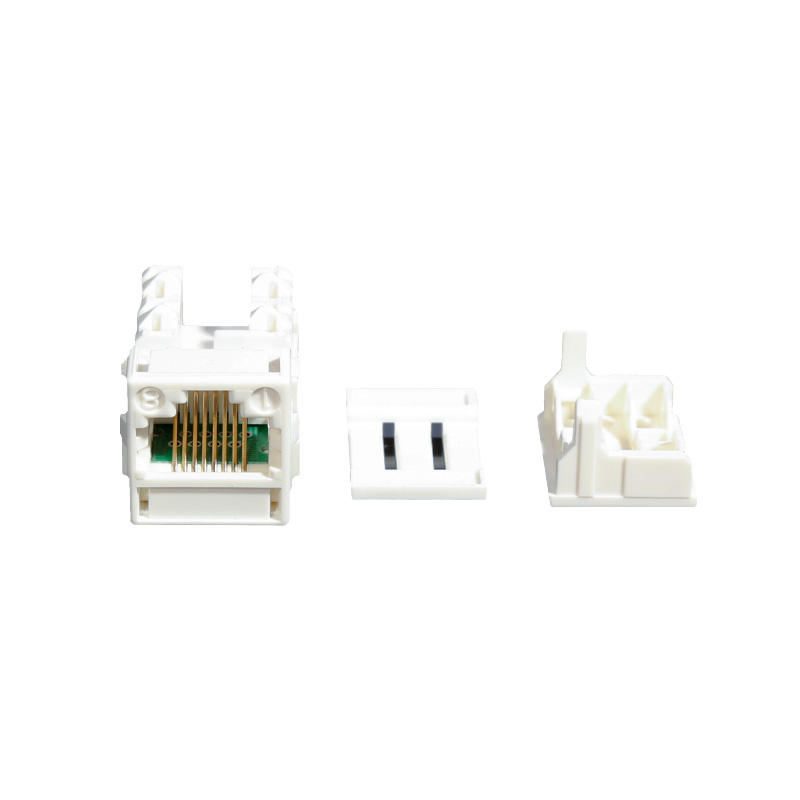

| Feature | Shielded (STP/FTP) | Unshielded (UTP) | Application Difference |
|---|---|---|---|
| Construction | Full metal shield with integrated grounding system | Enhanced plastic housing with improved pair separation | STP for EMI-sensitive areas, UTP for standard installations |
| EMI Protection | Superior protection against electromagnetic and radio frequency interference | Advanced crosstalk performance through enhanced design | STP in industrial settings, UTP in commercial buildings |
| Contact Plating | 50μ gold plating with enhanced corrosion resistance | 50μ gold plating (premium quality) | Both provide excellent connectivity for gigabit speeds |
| Cable Compatibility | STP/FTP Cat5e cables with drainage wire | UTP Cat5e cables (24AWG) | Must use matching cable type for optimal performance |
| Performance | 100MHz, 1Gbps up to 100m (enhanced noise immunity) | 100MHz, 1Gbps up to 100m | Same gigabit speed, superior interference rejection with STP |
| PS-NEXT Performance | ≥42.3dB at 100MHz | ≥40.3dB at 100MHz | STP provides better power sum near-end crosstalk performance |
| Return Loss | ≥21.1dB at 100MHz | ≥20.1dB at 100MHz | Improved signal integrity with shielded modules |
| Installation | Specialized tool for shield connection and grounding | Standard punch-down tool required | STP requires more expertise and proper grounding |
| Cost | Premium pricing for enhanced protection | Economical solution for most applications | STP for critical applications, UTP for budget projects |
Essential for manufacturing facilities, PLC systems, and industrial controls where heavy machinery generates significant electromagnetic interference.
Required in hospitals and clinics where medical equipment generates EMI and reliable connectivity is critical for patient care systems.
Ideal for locations near power lines, electrical equipment, or areas with significant radio frequency interference.
Perfect for high-density server environments requiring superior EMI protection against interference from nearby equipment.
Full metal shielding provides 360° protection against electromagnetic interference for critical applications
Supports 1Gbps data transmission with 100MHz bandwidth for high-speed networking
Integrated grounding system ensures proper shield connection and reliable performance
High-quality materials withstand harsh environmental conditions and repeated use
| Parameter | Specification | Standard |
|---|---|---|
| Compatibility | Cat5e STP/FTP cables | TIA/EIA-568-B.2 |
| Bandwidth | 100MHz | ISO/IEC 11801 |
| Data Rate | 1000Mbps (1Gbps) | IEEE 802.3ab |
| Shielding Type | Full metal shield with grounding | STP/FTP Design |
| Contact Material | Phosphor bronze | Premium Quality |
| Contact Plating | 50μ gold over nickel | Enhanced Durability |
| Insertion Loss | ≤0.3dB at 100MHz | Superior Performance |
| Return Loss | ≥21dB at 100MHz | Enhanced Signal Quality |
| Operating Temperature | -40°C to +75°C | Industrial Grade |

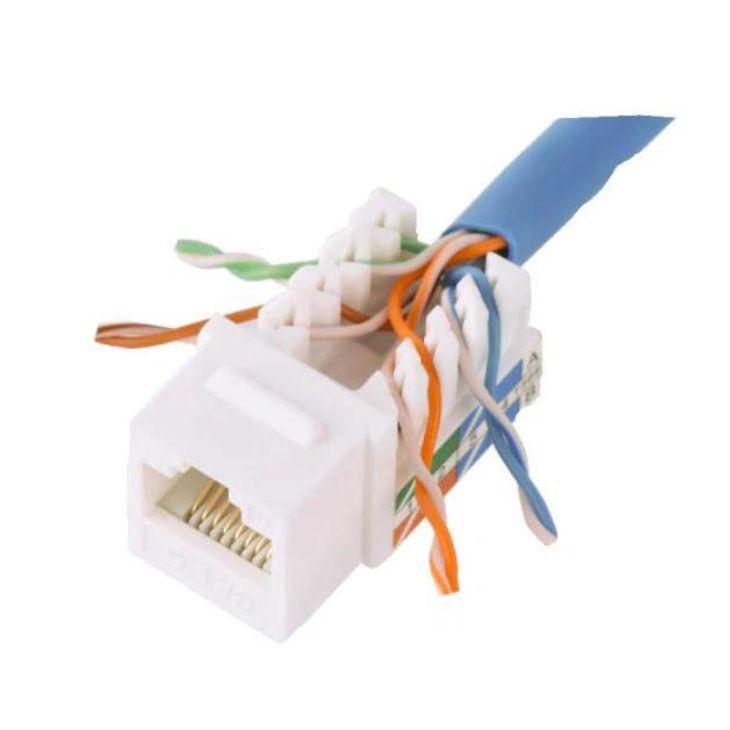

Strip approximately 2.5cm of cable jacket, carefully exposing the shield and drainage wire
Properly ground the shield to the module's grounding terminal for effective EMI protection
Follow T568A or T568B standard, maintaining pair twists as close to termination as possible
Use professional cable tester to confirm proper connectivity, grounding, and performance
