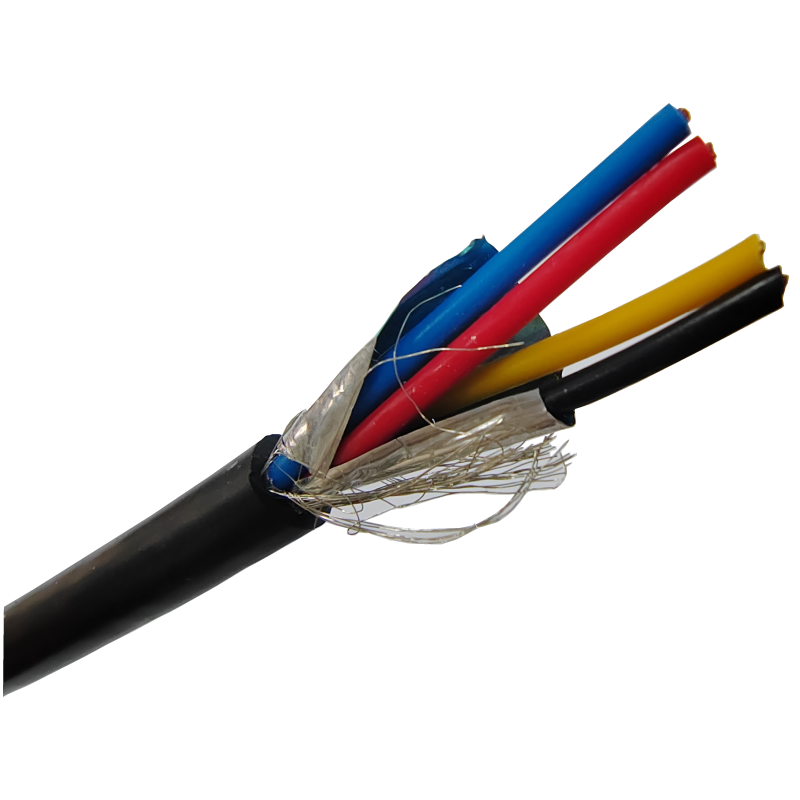

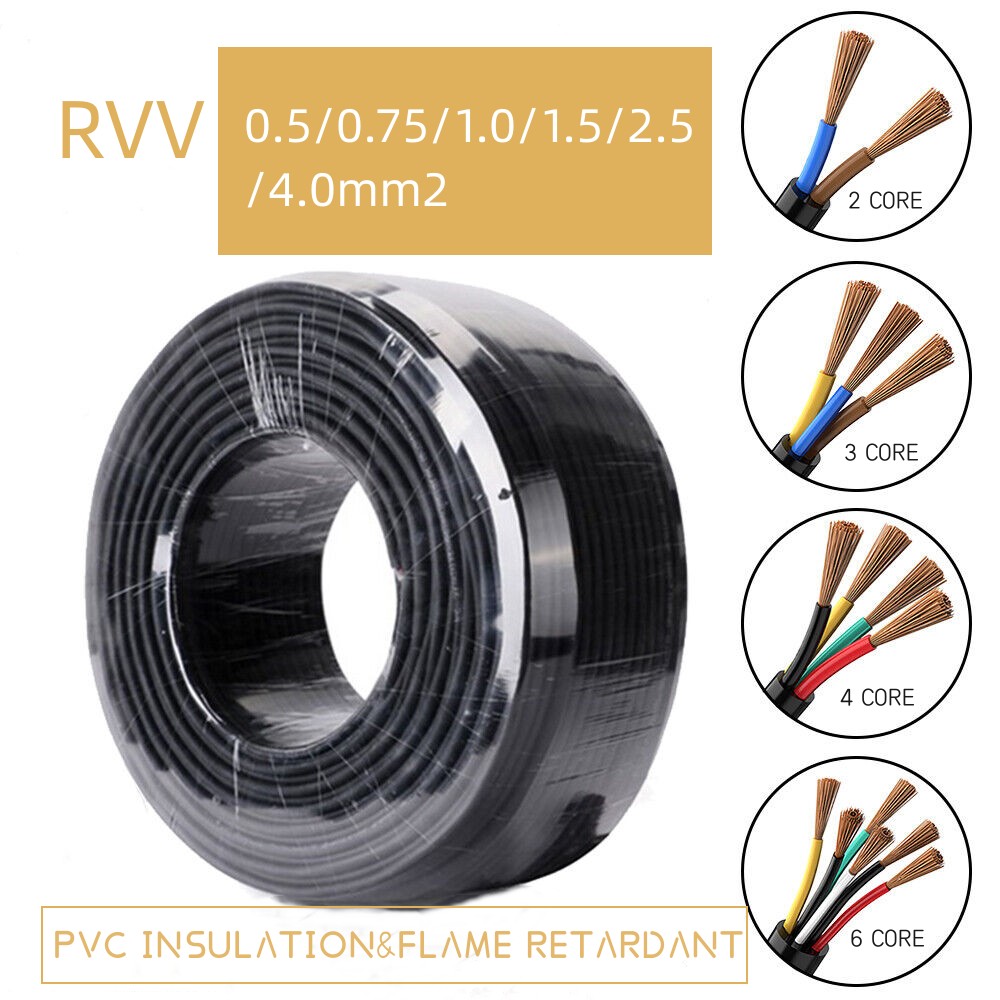

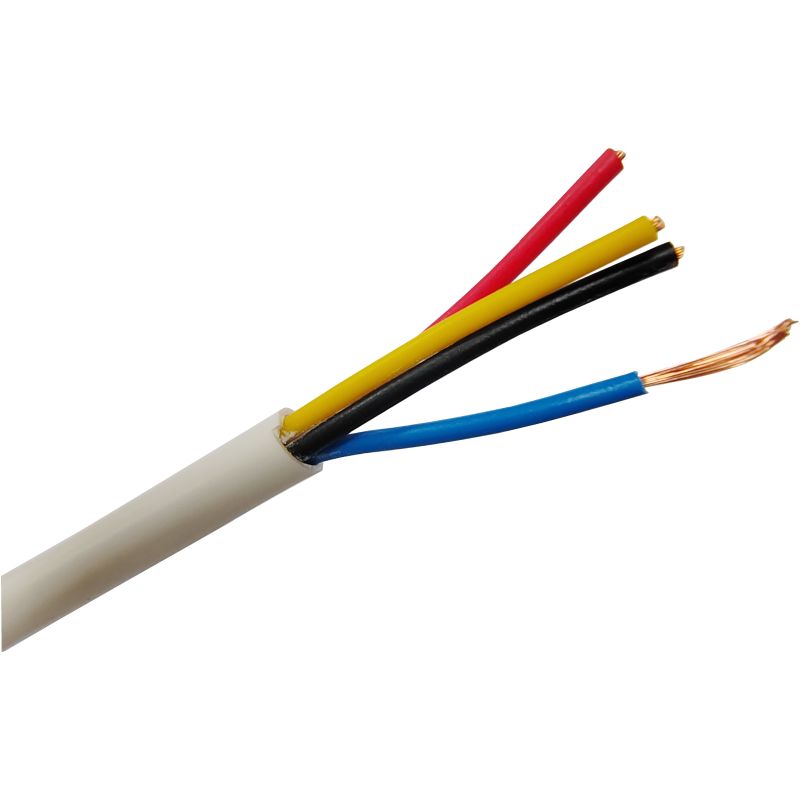

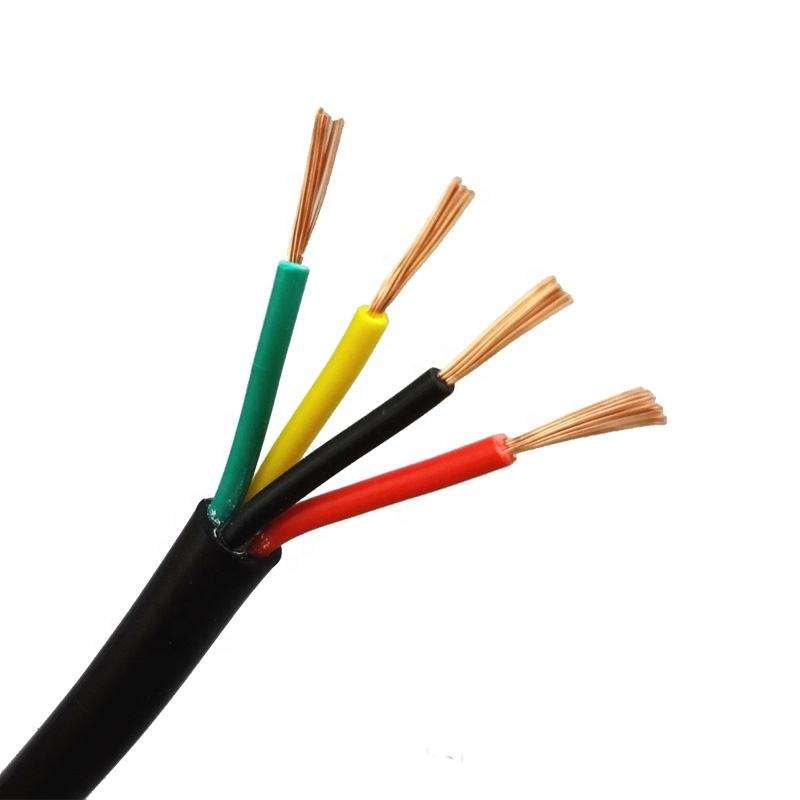

Quad-conductor PVC cables for complex wiring requirements
RVV 4-core cables provide a versatile solution for complex wiring requirements. With four individually insulated conductors, these cables are ideal for control circuits and signaling applications where multiple circuits are needed in a single cable.
Engineered for reliable performance in demanding environments, our RVV 4-core cables offer excellent flexibility and durability while maintaining compliance with international safety standards.
| Model | Conductor Structure | Insulation Thickness (mm) | Sheath Thickness (mm) | Avg. Diameter (mm) | Conductor Resistance (Ω/km) | Current Rating (A) |
|---|---|---|---|---|---|---|
| RVV 4×0.5 | 16/0.2 | 0.6 | 0.8 | 7.0 | ≤39.0 | 7 |
| RVV 4×0.75 | 24/0.2 | 0.6 | 0.8 | 7.8 | ≤26.0 | 10 |
| RVV 4×1.0 | 32/0.2 | 0.6 | 0.8 | 8.5 | ≤19.5 | 13 |
| RVV 4×1.5 | 30/0.25 | 0.7 | 1.0 | 9.8 | ≤13.3 | 17 |
| RVV 4×2.5 | 49/0.26 | 0.8 | 1.0 | 12.0 | ≤7.98 | 25 |
| RVV 4×4 | 56/0.3 | 0.8 | 1.2 | 14.0 | ≤4.95 | 32 |
Note: Standard core colors: Brown, Black, Blue, Green/Yellow. Custom color configurations available. All products undergo rigorous quality control testing to ensure compliance with international standards.
