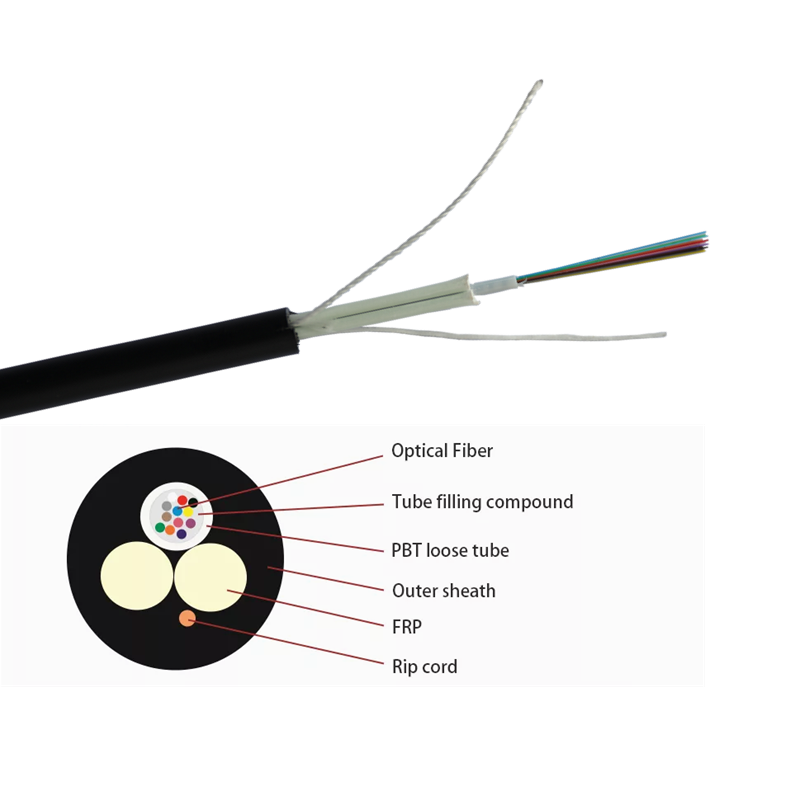

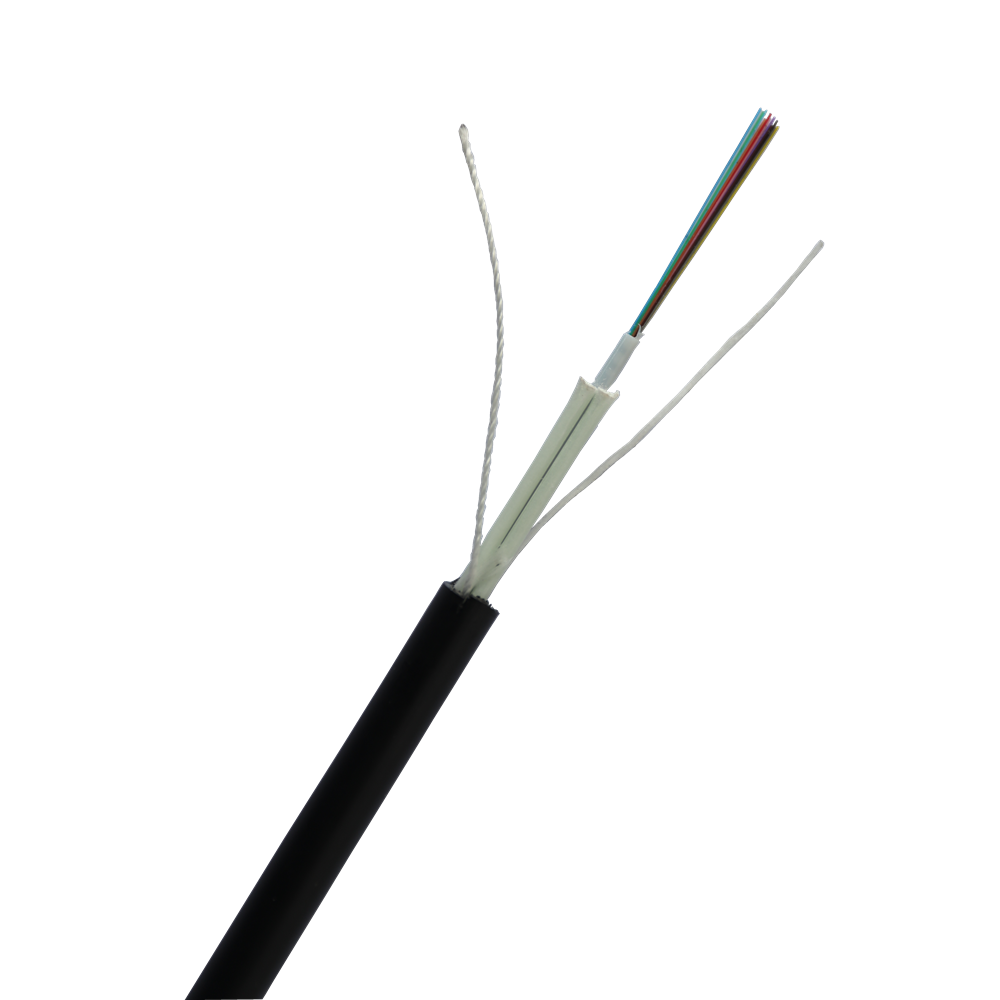

Outdoor Single-Mode Fiber Cables for High-Performance Communication Networks
The GYTA/S series of outdoor fiber optic cables are designed for reliable performance in various environmental conditions. These single-mode cables offer excellent transmission characteristics and mechanical properties, making them ideal for outdoor communication networks.
Minimal signal loss over long distances, ensuring reliable data transmission.
Supports high-speed data transmission for current and future network demands.
Designed to withstand harsh outdoor conditions including moisture and temperature variations.
| Model | Core Count | Application Scenario |
|---|---|---|
| 4-core Outdoor Single-mode GYTA/S | 4 | Suitable for small-scale communication projects with low data transmission requirements, such as rural area networks or small business setups. |
| 6-core Outdoor Single-mode GYTA/S | 6 | Can be used in some community networks or medium-sized enterprise branch connections. |
| 8-core Outdoor Single-mode GYTA/S | 8 | Ideal for medium-scale enterprise local area networks and some urban communication infrastructure. |
| 12-core Outdoor Single-mode GYTA/S | 12 | Suitable for larger enterprise networks and regional communication backbones. |
| 16-core Outdoor Single-mode GYTA/S | 16 | Can support high-density connection requirements in campus networks. |
| 24-core Outdoor Single-mode GYTA/S | 24 | Applicable to large-scale data center interconnections and main urban communication trunks. |
| 36-core Outdoor Single-mode GYTA/S | 36 | Used in large-scale urban network expansion and high-capacity data transmission scenarios. |
| 48-core Outdoor Single-mode GYTA/S | 48 | Suitable for core network construction in large cities and long-distance trunk lines. |
| 72-core Outdoor Single-mode GYTA/S | 72 | For high-end data centers and large-scale backbone network construction. |
| 96-core Outdoor Single-mode GYTA/S | 96 | Mainly used in super-large-scale data center interconnections and national-level communication networks. |
| 144-core Outdoor Single-mode GYTA/S | 144 | Designed for extremely high-capacity global communication networks and large-scale cloud computing centers. |
Ideal for long-distance communication infrastructure in urban environments, connecting different parts of the city with reliable fiber optic links.
Perfect for connecting buildings within corporate campuses, universities, and large enterprise facilities with high-bandwidth requirements.
Suited for telecommunications providers building last-mile connections and access networks for broadband services.
Excellent for interconnecting data centers and building backbone networks that require high capacity and reliability.
| Parameter | Specification | Standard |
|---|---|---|
| Fiber Type | Single-mode (G.652.D) | ITU-T G.652 |
| Attenuation | ≤ 0.36 dB/km @ 1310nm | ISO/IEC 11801 |
| Bandwidth | > 1 GHz·km | IEC 60793-2-50 |
| Core/Cladding Diameter | 9/125μm | Standard |
| Operating Temperature | -40°C to +70°C | Commercial Grade |
| Tensile Strength | Short-term 1500N, Long-term 600N | IEC 60794-1-2 |
| Crush Resistance | 1000 N/10cm | IEC 60794-1-2 |
| Bend Radius | 20× cable diameter (dynamic), 10× cable diameter (static) | IEC 60794-1-2 |
