Premium 75Ω coaxial cable for long-distance video transmission
SYV75-7# coaxial cables are engineered for long-distance video transmission in professional applications. Featuring thick conductors and enhanced shielding, these cables ensure superior signal integrity for critical video applications.
With their robust construction and compliance with international standards, our SYV75-7# cables provide reliable performance in demanding environments, ensuring clear video transmission over extended distances.
| Parameter | SYV75-7# 128B | Unit |
|---|---|---|
| Impedance | 75 | Ω |
| Conductor Material | Copper | - |
| Conductor Diameter | 1.15 | mm |
| Insulation Material | PE | - |
| Insulation Diameter | 5.0 | mm |

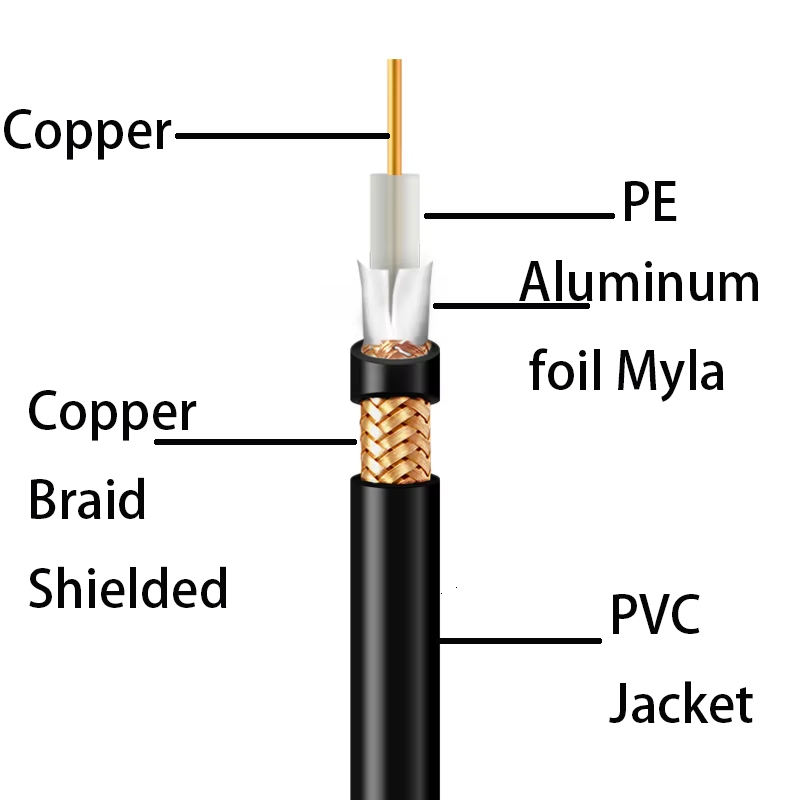

| Shielding | Aluminum Foil + Braid | - |
| Sheath Material | PVC | - |
| Sheath Diameter | 7.8 | mm |
| Capacitance | ≤52 | pF/m |
| Attenuation (100MHz) | ≤0.05 | dB/m |
| Velocity of Propagation | ≥74 | % |
| Rated Voltage | 300 | V |
| Temperature Range | -30 to +70 | °C |
Note: All specifications are based on standard models. Custom lengths and connectors available. Products undergo rigorous quality control testing to ensure compliance with international standards.
