CAT8-FTP-cable-1000ft-305M

CAT8 FTP Ethernet Cable delivers 40Gbps speeds over 2000MHz bandwidth with foil shielding for superior EMI protection in high-performance data center applications.

Categories CAT8, Lan Cable, Verde products

CAT8 FTP Ethernet Cable - 40Gbps High-Speed Data Center Solution

CAT8 FTP Ethernet Cable

Next-generation 40Gbps networking solution with 2000MHz bandwidth for data centers and high-performance computing environments.

40Gbps Speed

FTP Shielding

2000MHz Bandwidth

30m Distance

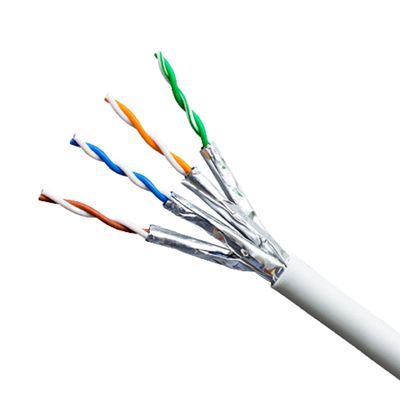

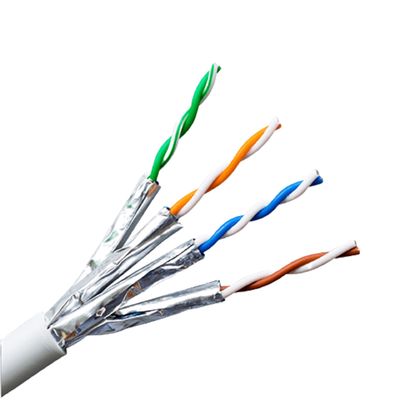

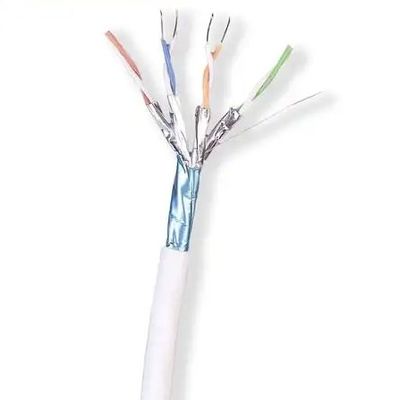

CAT8 FTP Ethernet Cable represents the cutting edge of twisted-pair networking technology, supporting incredible 40Gbps data transfer rates with 2000MHz bandwidth. Featuring foil shielding (FTP) design, it provides excellent electromagnetic interference protection while maintaining cost efficiency for data center applications.

Key Advantages:

Ultra-High Speed: Supports 25Gbps/40Gbps data transfer up to 30 meters
Massive Bandwidth: 2000MHz frequency support for extreme data throughput
Cost-Effective Shielding: FTP design provides excellent EMI protection at lower cost than SFTP
Future-Proof: Ready for next-generation network infrastructure requirements

Physical Specifications

Specification	Value
Category	CAT8 FTP
Conductor Material	100% Oxygen-Free Copper (OFC)
Conductor Size	22 AWG (0.64mm)
Shielding Type	FTP (Foil Twisted Pair)
Jacket Material	PVC or LSZH (Optional)
Cable Diameter	8.2mm
Color Options	Blue, Black, Gray, Yellow

Performance Data

Parameter	Value
Bandwidth	2000 MHz
Data Transfer Rate	Up to 40 Gbps
Max Distance (40Gbps)	30 meters
Max Distance (25Gbps)	30 meters
Impedance	100Ω ±15%

Connector Details

Feature	Specification
Connector Type	RJ45 (8P8C) or GG45
Contact Plating	50μ" Gold Plating
Shielding	Metal Shielded Connector
Insertion Cycles	≥ 750 cycles

Electrical Characteristics

Characteristic	Value
NEXT (Near-End Crosstalk)	≥ 54.1 dB @ 2000 MHz
Insertion Loss	≤ 14.6 dB @ 2000 MHz
Return Loss	≥ 14.1 dB @ 2000 MHz
PS-ANEXT	≥ 61.1 dB @ 2000 MHz

Performance Comparison

Characteristic	CAT6A FTP	CAT7A SFTP	CAT8 FTP
Bandwidth	500 MHz	1000 MHz	2000 MHz
Max Data Rate	10 Gbps	10 Gbps	40 Gbps
Max Distance	100m @ 10Gbps	100m @ 10Gbps	30m @ 40Gbps
Shielding	Foil Only	Pair Foil + Overall Braid	Foil Shielding
Primary Application	Enterprise Networks	Data Center Backbone	High-Speed Data Center
Cost Efficiency	High	Medium	High (for 40Gbps)

Recommended Applications

Data Center Interconnects

High-speed connections between servers, switches, and storage in data center environments

40GBase-T Networks

Infrastructure for 40 Gigabit Ethernet deployments using twisted-pair technology

High-Performance Computing

Connections in HPC environments requiring extreme bandwidth between components

Storage Area Networks

High-speed connections for SAN infrastructure requiring 25G/40G speeds

Cloud Infrastructure

Connections in cloud data centers and hosting environments

8K Video Production

High-bandwidth video networks for professional 8K video editing and broadcasting

Standards & Certifications

📋

ANSI/TIA-568-C.2-1

🔒

RoHS Compliant

⚡

UL Listed

🌐

ISO/IEC 11801-1

🏭

IEEE 802.3bq
