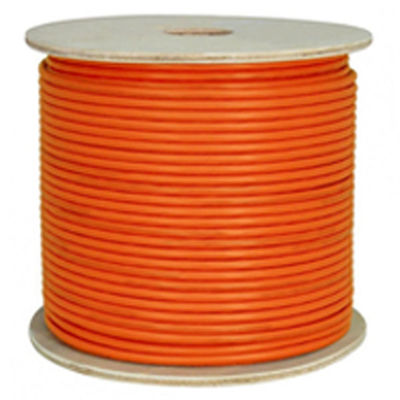

CAT7-SFTP-cable-1000ft-305M

CAT7 SFTP Ethernet Cable supports 10Gbps speeds with 600MHz bandwidth and dual foil-braid shielding for robust EMI protection in high-interference data centers and industrial environments.

Categories CAT7, Lan Cable, Verde products

CAT7 SFTP Ethernet Cable - Professional Double-Shielded Networking Solution

CAT7 SFTP Ethernet Cable

Professional-grade double-shielded networking solution with 600MHz bandwidth and 10Gbps speeds for extreme noise environments.

10Gbps Speed

Double Shielding

600MHz Bandwidth

100m Distance

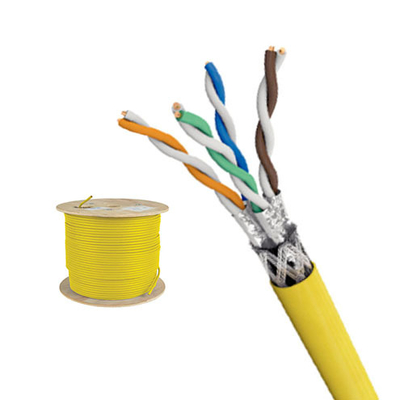

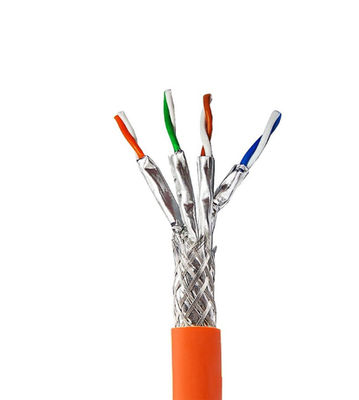

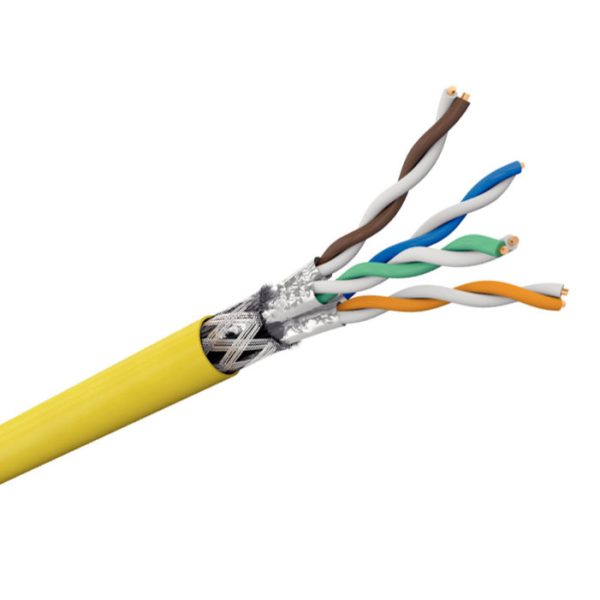

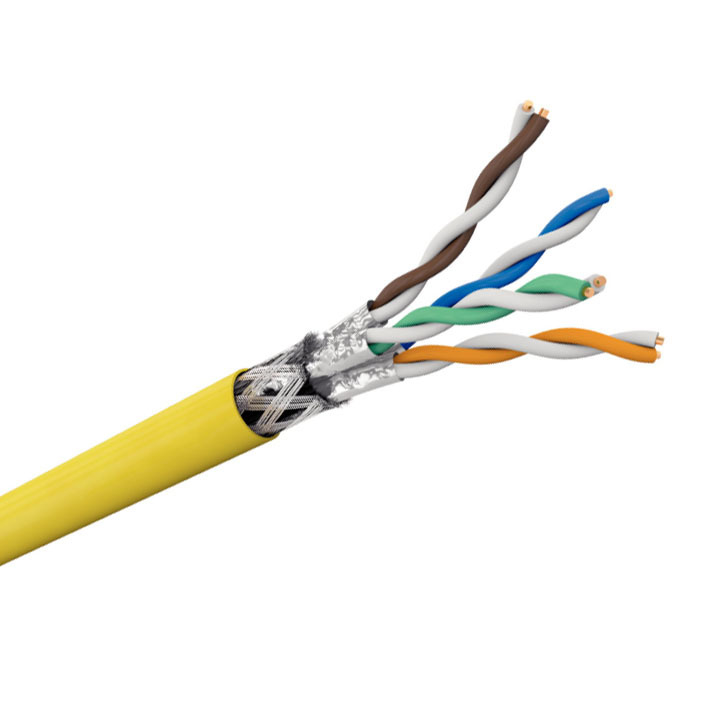

CAT7 SFTP Ethernet Cable features double-layer shielding (individual pair foil + overall braided mesh) design, providing maximum electromagnetic interference (EMI) protection for extreme noise environments. Supports 10Gbps data transfer rates with 600MHz bandwidth, making it ideal for industrial settings, data centers, and mission-critical enterprise networks.

Key Advantages:

Maximum Shielding: Double-layer shielding provides ≥70dB EMI protection
High-Speed Performance: Supports 10Gbps data transfer up to 100 meters
Extreme Environment Ready: Ideal for industrial settings with high EMI
Future-Proof: Supports future high-speed network upgrade requirements

Physical Specifications

Specification	Value
Category	CAT7 SFTP
Conductor Material	100% Oxygen-Free Copper (OFC)
Conductor Size	22 AWG (0.64mm)
Shielding Type	SFTP (Double-layer: Pair Foil + Overall Braid)
Jacket Material	PVC or LSZH (Optional)
Cable Diameter	7.5mm
Color Options	Blue, Black, Gray, White

Performance Data

Parameter	Value
Bandwidth	600 MHz
Data Transfer Rate	Up to 10 Gbps
Max Distance (10Gbps)	100 meters
Impedance	100Ω ±15%
Propagation Delay	≤ 536 ns/100m

Connector Details

Feature	Specification
Connector Type	RJ45 (8P8C)
Contact Plating	50μ" Gold Plating
Shielding	Metal Shielded Connector
Insertion Cycles	≥ 750 cycles

Electrical Characteristics

Characteristic	Value
NEXT (Near-End Crosstalk)	≥ 65.1 dB @ 600 MHz
Insertion Loss	≤ 16.8 dB @ 600 MHz
Return Loss	≥ 14.1 dB @ 600 MHz
Delay Skew	≤ 45 ns/100m

Performance Comparison

Characteristic	CAT6A UTP	CAT6A SFTP	CAT7 SFTP
Bandwidth	500 MHz	500 MHz	600 MHz
Max Data Rate	10 Gbps	10 Gbps	10 Gbps
10Gbps Distance	100m	100m	100m
EMI Protection	None	Excellent (≥60dB)	Superior (≥70dB)
Suitable Environment	Data Centers	High-Interference	Extreme Industrial
Shielding Type	None	Pair Foil + Overall Braid	Enhanced Pair Foil + Overall Braid

Recommended Applications

Industrial Automation

Factory floors and manufacturing environments with extreme electromagnetic interference

Data Centers

High-density server environments requiring maximum EMI protection between racks

Broadcast Studios

Professional audio/video production facilities with sensitive equipment

Medical Facilities

Hospitals and clinics with critical medical equipment requiring interference-free connections

Research Laboratories

Scientific research facilities with sensitive instrumentation and measurement equipment

Power Plants

Energy generation facilities with extreme electrical interference environments

Standards & Certifications

📋

TIA/EIA-568-C.2

🔒

RoHS Compliant

⚡

UL Listed

🌐

ISO/IEC 11801

🏭

Industrial Grade
