CAT6A-FTP-cable-1000ft-305M

CAT6A FTP Ethernet Cable delivers 10Gbps speeds with 500MHz bandwidth and foil shielding for superior EMI protection in high-interference environments.

Categories CAT6A, Lan Cable, Verde products

CAT6A FTP Ethernet Cable - Professional Shielded Networking Solution

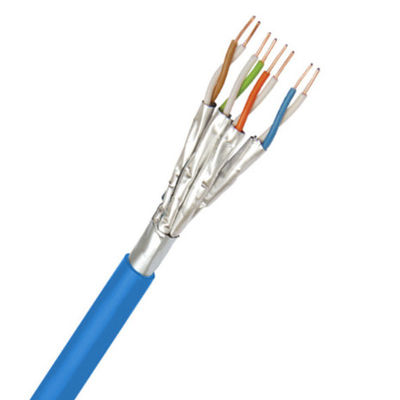

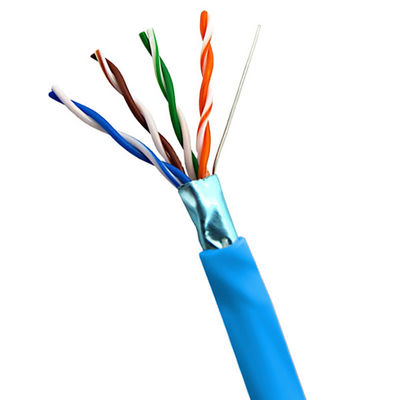

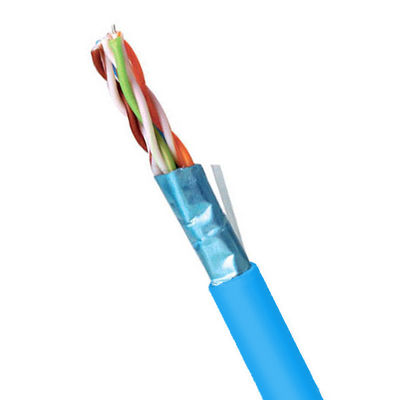

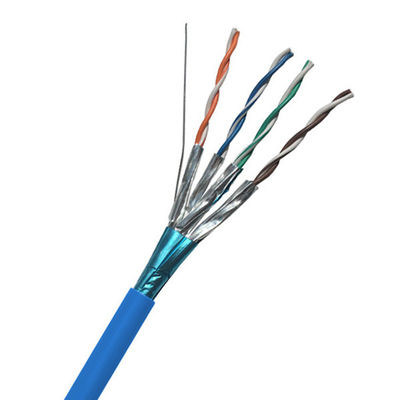

CAT6A FTP Ethernet Cable

High-performance 500MHz bandwidth foil shielded twisted pair cable for 10Gbps networking in enterprise and industrial environments.

10Gbps Speed

FTP Shielding

500MHz Bandwidth

100m Distance

CAT6A FTP Ethernet Cable features foil shielded twisted pair (FTP) design, providing excellent electromagnetic interference (EMI) protection for high-interference environments. Supports 10Gbps data transfer rates with 500MHz bandwidth, making it ideal for data centers, industrial settings, and high-end enterprise networks.

Key Advantages:

Superior Shielding: Foil shielding provides ≥40dB EMI protection
High-Speed Performance: Supports 10Gbps data transfer up to 100 meters
Cost-Effective: More economical than STP while providing better protection than UTP
Future-Proof: Supports future high-speed network upgrade requirements

Physical Specifications

Specification	Value
Category	CAT6A FTP
Conductor Material	100% Oxygen-Free Copper (OFC)
Conductor Size	23 AWG (0.57mm)
Shielding Type	FTP (Foil Twisted Pair)
Jacket Material	PVC or LSZH (Optional)
Cable Diameter	6.5mm
Color Options	Blue, Black, Gray, White

Performance Data

Parameter	Value
Bandwidth	500 MHz
Data Transfer Rate	Up to 10 Gbps
Max Distance (10Gbps)	100 meters
Impedance	100Ω ±15%
Propagation Delay	≤ 536 ns/100m

Connector Details

Feature	Specification
Connector Type	RJ45 (8P8C)
Contact Plating	50μ" Gold Plating
Shielding	Metal Shielded Connector
Insertion Cycles	≥ 750 cycles

Electrical Characteristics

Characteristic	Value
NEXT (Near-End Crosstalk)	≥ 50.1 dB @ 500 MHz
Insertion Loss	≤ 16.8 dB @ 500 MHz
Return Loss	≥ 14.1 dB @ 500 MHz
Delay Skew	≤ 45 ns/100m

Performance Comparison

Characteristic	CAT6 UTP	CAT6A UTP	CAT6A FTP
Bandwidth	250 MHz	500 MHz	500 MHz
Max Data Rate	1 Gbps	10 Gbps	10 Gbps
10Gbps Distance	≤ 55m	100m	100m
EMI Protection	None	None	Excellent (≥40dB)
Suitable Environment	Standard Office	Data Centers	High-Interference Industrial
Cost Efficiency	High	Medium	High (Compared to STP)

Recommended Applications

Data Centers

High-density server environments requiring 10Gbps connectivity between racks and equipment

Industrial Automation

Factory floors and manufacturing environments with high electromagnetic interference

Media Production

4K/8K video editing studios and broadcast facilities requiring massive data transfers

Enterprise Networks

Corporate networks with high bandwidth requirements for VoIP, video conferencing, and large file transfers

High-Performance Gaming

Esports arenas and gaming setups requiring ultra-low latency and high bandwidth

Medical Equipment Networks

Connecting medical diagnostic equipment requiring high reliability and interference resistance

Standards & Certifications

📋

TIA/EIA-568-C.2

🔒

RoHS Compliant

⚡

UL Listed

🌐

ISO/IEC 11801
