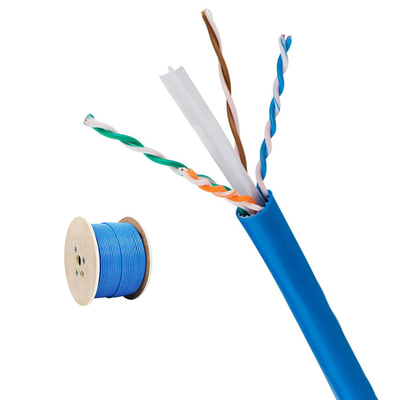

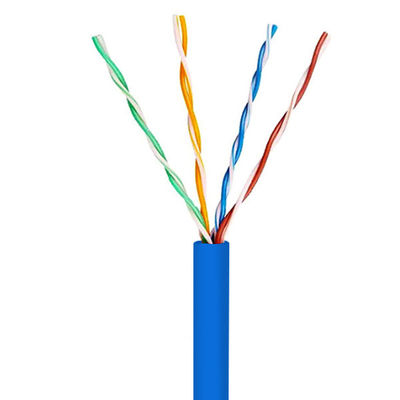

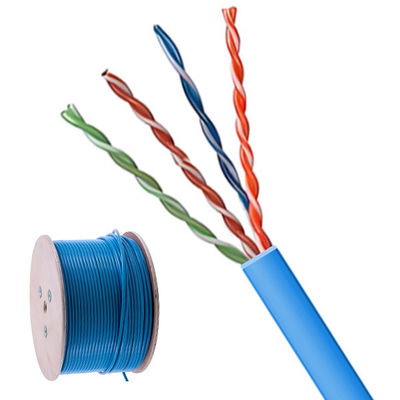

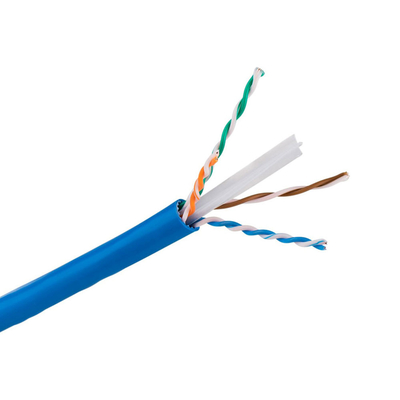

CAT6A UTP cable delivers 10Gbps speeds with 500MHz bandwidth, featuring unshielded design for cost-effective and easy installation in office and enterprise networks.
High-performance 500MHz bandwidth unshielded twisted pair cable for 10Gbps networking in enterprise environments.
| Specification | Value |
|---|---|
| Category | CAT6A UTP |
| Conductor Material | 100% Oxygen-Free Copper (OFC) |
| Conductor Size | 23 AWG (0.57mm) |
| Shielding | UTP (Unshielded Twisted Pair) |
| Jacket Material | PVC |
| Cable Diameter | 6.2mm |
| Color Options | Blue, Black, White, Gray, Red |
| Parameter | Value |
|---|---|
| Bandwidth | 500 MHz |
| Data Transfer Rate | Up to 10 Gbps |
| Max Distance (10Gbps) | 100 meters |
| Impedance | 100Ω ±15% |
| Propagation Delay | ≤ 536 ns/100m |
| Feature | Specification |
|---|---|
| Connector Type | RJ45 (8P8C) |
| Contact Plating | 50μ" Gold Plating |
| Insertion Cycles | ≥ 750 cycles |
| Characteristic | Value |
|---|---|
| NEXT (Near-End Crosstalk) | ≥ 33.1 dB @ 500 MHz |
| Insertion Loss | ≤ 16.8 dB @ 500 MHz |
| Return Loss | ≥ 12.0 dB @ 500 MHz |
| Delay Skew | ≤ 45 ns/100m |
High-density server environments requiring 10Gbps connectivity between racks and equipment.
Corporate networks with high bandwidth requirements for VoIP, video conferencing, and large file transfers.
High-speed home networks supporting multiple devices, streaming, and gaming.
Esports arenas and gaming setups requiring ultra-low latency and high bandwidth.
University campuses, classrooms, and computer labs requiring high-speed connectivity.
Medical facilities requiring reliable network connections for patient records and equipment.
TIA/EIA-568-C.2
RoHS Compliant
UL Listed
ISO/IEC 11801
