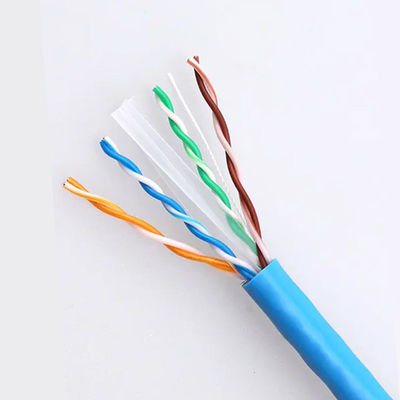

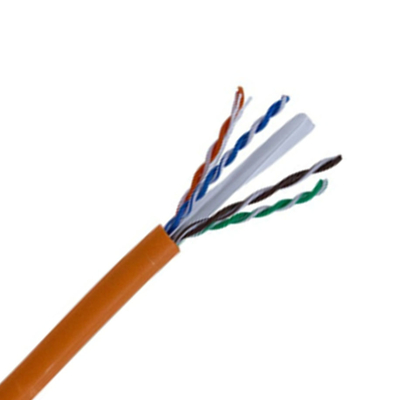

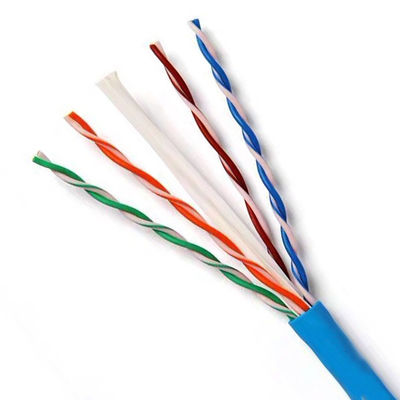

CAT6 UTP cable delivers 1Gbps speeds at 100 meters with 250MHz bandwidth, featuring unshielded design for cost-effective office and home networking.
| Specification | Value |
|---|---|
| Category | CAT6 UTP |
| Conductor Material | 100% Oxygen-Free Copper (OFC) |
| Conductor Size | 23 AWG (0.57mm) |
| Shielding | UTP (Unshielded Twisted Pair) |
| Jacket Material | PVC (Standard) |
| Cable Diameter | 5.8mm |
| Color Options | Blue, Gray, White, Black |
| Parameter | Value |
|---|---|
| Bandwidth | 250 MHz |
| Data Transfer Rate | Up to 1 Gbps (1000 Mbps) |
| Max Distance | 100 meters (328 feet) |
| Impedance | 100Ω ±15% |
| Propagation Delay | ≤ 548 ns/100m |
| Feature | Specification |
|---|---|
| Connector Type | RJ45 (8P8C) |
| Contact Plating | 50μ" Gold Plating |
| Shielding | Standard UTP Compatible |
| Insertion Cycles | ≥ 750 cycles |
| Characteristic | Value |
|---|---|
| NEXT (Near-End Crosstalk) | ≥ 44.3 dB @ 100 MHz |
| Insertion Loss | ≤ 19.8 dB @ 100 MHz |
| Return Loss | ≥ 12.0 dB @ 100 MHz |
| Delay Skew | ≤ 45 ns/100m |
0°C to +60°C
(32°F to +140°F)
Up to 85% RH
Non-Condensing
Standard Flexibility
Minimum Bending Radius: 4x Diameter
Ideal for connecting workstations, printers, and network equipment in office environments.
Perfect for home internet connections, gaming consoles, and smart home devices.
Great for classrooms, computer labs, and campus networks requiring reliable connectivity.
Suitable for point-of-sale systems, inventory management, and store networks.
Ideal for hotel guest networks, front desk systems, and hospitality management.
Cost-effective solution for small business networks and startup offices.
TIA/EIA-568
RoHS Compliant
UL Listed
ISO/IEC 11801
