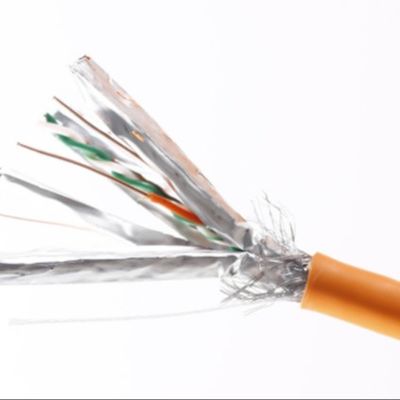

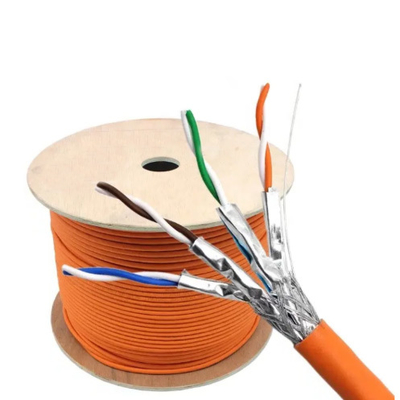

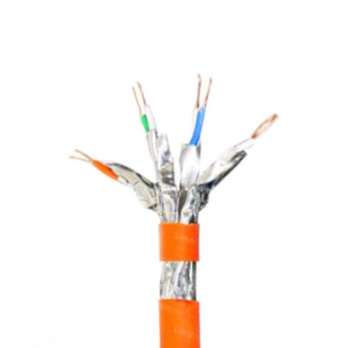

CAT6 SFTP cable provides 1Gbps speeds at 100 meters with 250MHz bandwidth, featuring double-layer shielding for exceptional EMI protection in demanding industrial environments.
High-performance shielded networking solution with 250MHz bandwidth and 1Gbps speeds for extreme EMI environments.
| Specification | Value |
|---|---|
| Category | CAT6 SFTP |
| Conductor Material | 100% Oxygen-Free Copper (OFC) |
| Conductor Size | 23 AWG (0.57mm) |
| Shielding | SFTP (Screened Foiled Twisted Pair) |
| Jacket Material | PVC |
| Cable Diameter | 6.5mm |
| Color Options | Blue, Black, Gray, White |
| Parameter | Value |
|---|---|
| Bandwidth | 250 MHz |
| Data Transfer Rate | Up to 1 Gbps |
| Max Distance | 极狐100 meters (328 feet) |
| Impedance | 100Ω ±15% |
| Propagation Delay | ≤ 548 ns/100m |
| Feature | Specification |
|---|---|
| Connector Type | RJ45 (8P8C) |
| Contact Plating | 50μ" Gold Plating |
| Shielding | Fully shielded metal connectors |
| Insertion Cycles | ≥ 750 cycles |
| Characteristic | Value |
|---|---|
| NEXT (Near-End Crosstalk) | ≥ 44.3 dB @ 250 MHz |
| Insertion Loss | ≤ 19.8 dB @ 250 MHz |
| Return Loss | ≥ 12.0 dB @ 250 MHz |
| Delay Skew | ≤ 45 ns/100m |
| Shielding Effectiveness | ≥ 55 dB @ 100 MHz |
Perfect for factory floors and manufacturing environments with high levels of electromagnetic interference.
Suitable for connecting medical equipment and diagnostic tools in hospital environments where signal integrity is critical.
Excellent for audio/video production and broadcast facilities requiring maximum signal purity.
Ideal for scientific instruments and research equipment in environments with sensitive measurements.
Great for server rooms and data centers where EMI protection is essential for reliable operation.
Essential for control systems and monitoring equipment in high-interference industrial settings.
TIA/EIA-568-C.2
RoHS Compliant
UL Listed
ISO/IEC 11801
EMC Directive
