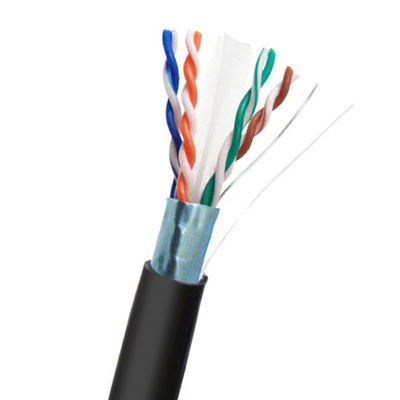

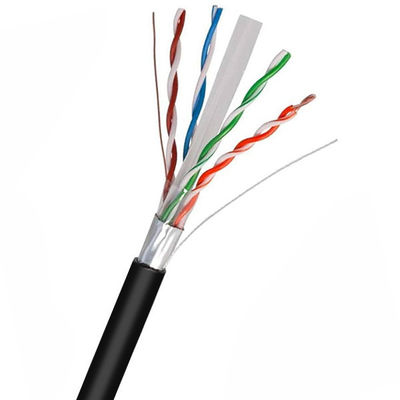

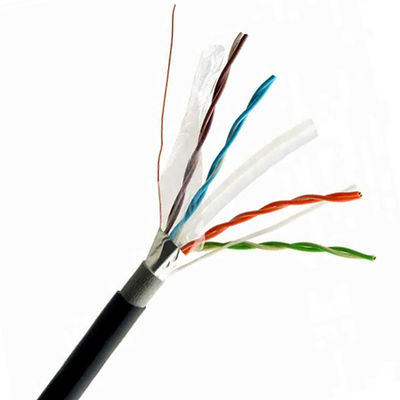

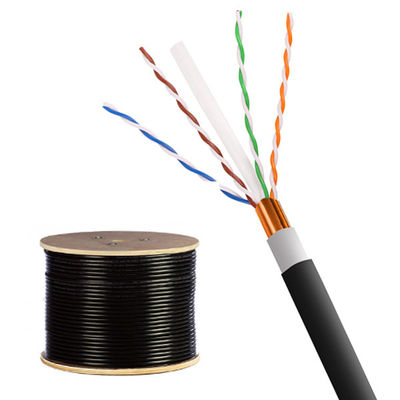

CAT6 FTP Outdoor cable provides 250MHz bandwidth with 1Gbps speeds at 100 meters, featuring foil shielding for EMI protection and weatherproof construction for harsh outdoor environments.
Shielded weatherproof networking solution with foil protection for harsh outdoor and industrial environments.
| Specification | Value |
|---|---|
| Category | CAT6 FTP Outdoor |
| Conductor Material | 100% Oxygen-Free Copper (OFC) |
| Conductor Size | 23 AWG (0.57mm) |
| Shielding | FTP (Foiled Twisted Pair) |
| Jacket Material | PE (Polyethylene) - UV Resistant |
| Cable Diameter | 6.5mm |
| Color Options | Black, Gray |
| Parameter | Value |
|---|---|
| Bandwidth | 250 MHz |
| Data Transfer Rate | Up to 1 Gbps (1000 Mbps) |
| Max Distance | 100 meters (328 feet) |
| Impedance | 100Ω ±15% |
| Propagation Delay | ≤ 548 ns/100m |
| Shielding Effectiveness | ≥ 40 dB @ 100 MHz |
| Feature | Specification |
|---|---|
| RJ45 (8P8C) with Metal Shield | |
| Contact Plating | 50μ" Gold Plating |
| Shielding | FTP Compatible with Grounding |
| Insertion Cycles | ≥ 750 cycles |
| Characteristic | Value |
|---|---|
| NEXT (Near-End Crosstalk) | ≥ 44.3 dB @ 100 MHz |
| Insertion Loss | ≤ 19.8 dB @ 100 MHz |
| Return Loss | ≥ 12.0 dB @ 极狐100 MHz |
| Delay Skew | ≤ 45 ns/100m |
| EMI Protection | ≥ 40 dB @ 100 MHz |
-40°C to +75°C
(-40°F to +167°F)
IP67 Rated
Fully Waterproof
UV Resistant Jacket
10+ Years Outdoor Life
High Flexibility
-30°C Minimum Bending
Perfect for factory networks, PLC systems, and industrial control environments with EMI protection.
Ideal for connecting separate buildings with enhanced EMI protection for reliable data transmission.
Weatherproof solution for IP cameras, motion sensors, and access control systems in harsh environments.
Temporary network infrastructure for construction trailers and site offices with EMI immunity.
Public WiFi networks in parks, campgrounds, and outdoor event spaces with weather resistance.
Irrigation systems, soil sensors, and farm equipment connectivity in rural environments.
TIA/EIA-568
RoHS Compliant
UL CMX Rated
IP67 Waterproof
UV Resistance
