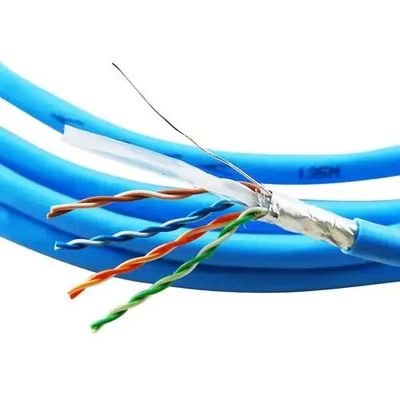

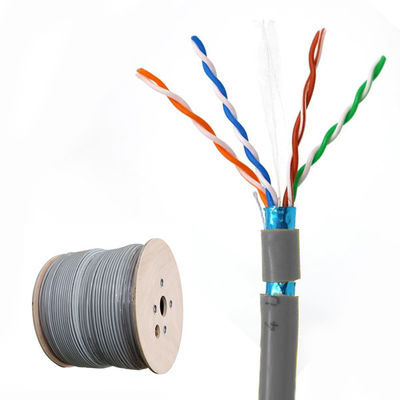

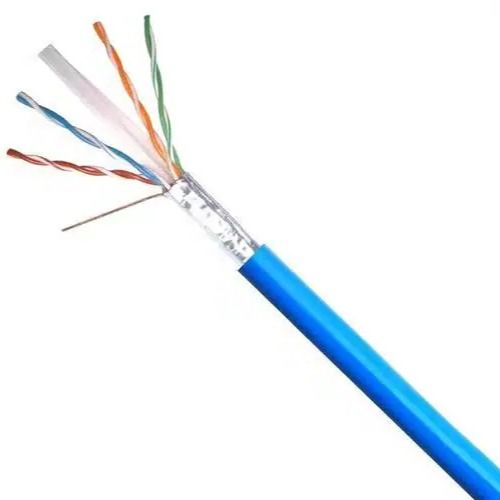

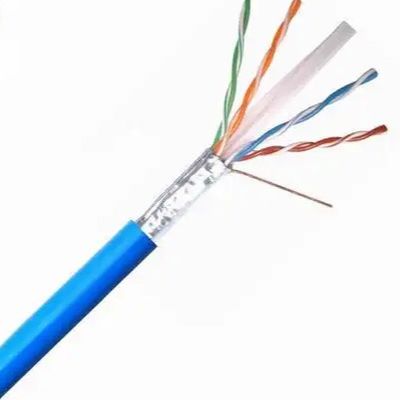

CAT6 FTP cable delivers 1Gbps speeds at 100 meters with 250MHz bandwidth, featuring foil shielding for enhanced EMI protection in demanding environments.
High-performance foil-shielded networking solution with 250MHz bandwidth and 1Gbps speeds for demanding environments.
| Specification | Value |
|---|---|
| Category | CAT6 FTP |
| Conductor Material | 100% Oxygen-Free Copper (OFC) |
| Conductor Size | 23 AWG (0.57mm) |
| Shielding | FTP (Foil Twisted Pair) |
| Jacket Material | PVC |
| Cable Diameter | 6.2mm |
| Color Options | Blue, Black, Gray, White |
| Parameter | Value |
|---|---|
| Bandwidth | 250 MHz |
| Data Transfer Rate | Up to 1 Gbps |
| Max Distance | 100 meters (328 feet) |
| Impedance | 100Ω ±15% |
| Propagation Delay | ≤ 548 ns/100m |
| Feature | Specification |
|---|---|
| Connector Type | RJ45 (8P8C) |
| Contact Plating | 50μ" Gold Plating |
| Shielding | Metal shielded connectors |
| Insertion Cycles | ≥ 750 cycles |
| Characteristic | Value |
|---|---|
| NEXT (Near-End Crosstalk) | ≥ 44.3 dB @ 250 MHz |
| Insertion Loss | ≤ 19.8 dB @ 250 MHz |
| Return Loss | ≥ 12.0 dB @ 250 MHz |
| Delay Skew | ≤ 45 ns/100m |
Ideal for connecting workstations, printers, and network equipment in office environments with EMI interference.
Perfect for factory floors and manufacturing environments with high levels of electromagnetic interference.
Excellent for audio/video studios and broadcast facilities where signal integrity is critical.
Suitable for connecting medical equipment and diagnostic tools in hospital environments.
Great for classrooms, labs, and campus networks requiring reliable connectivity.
Ideal for POS systems, inventory management, and security systems in retail stores.
TIA/EIA-568-C.2
RoHS Compliant
UL Listed
ISO/IEC 11801
