Professional Grade RJ45 Ethernet Jack for Enhanced Network Performance
Designed for Cat5e networks with improved crosstalk performance and reliable gigabit connectivity

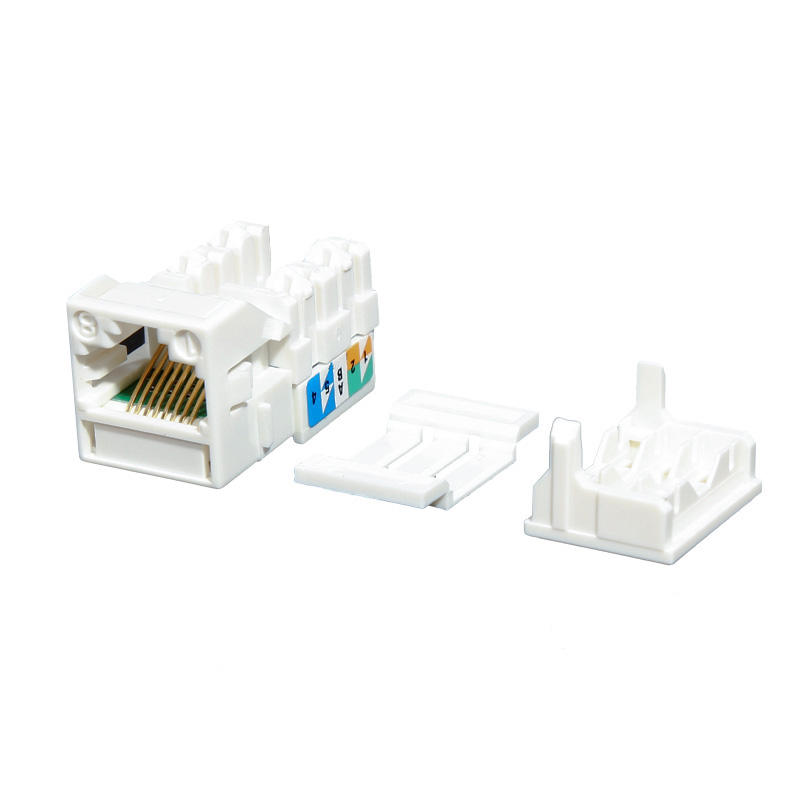

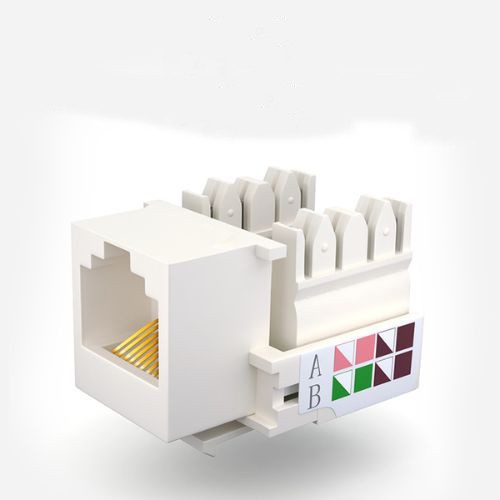

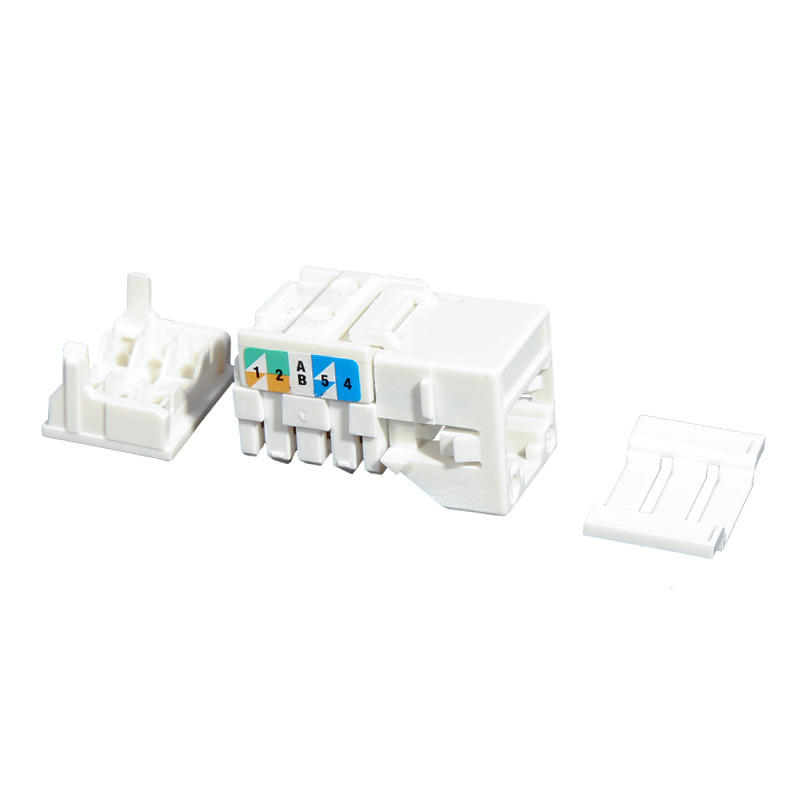

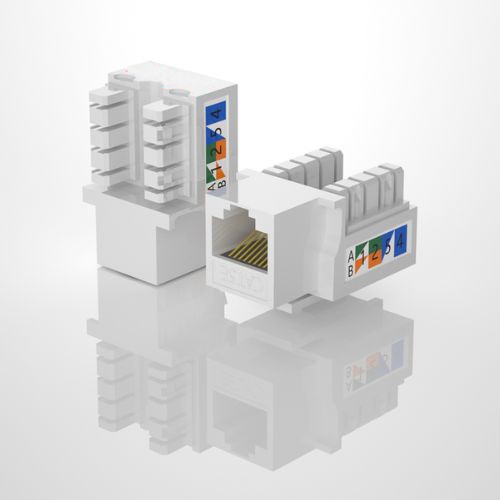

Cat5e UTPPunch-down design with color-coded wiring for quick and error-free termination
Fits standard wall plates and patch panels for seamless integration
| Feature | Unshielded (UTP) | Shielded (STP/FTP) | Application Difference |
|---|---|---|---|
| Construction | Enhanced plastic housing, improved pair separation | Metal shield with integrated grounding | UTP for standard environments, STP for high-EMI areas |
| EMI Protection | Advanced crosstalk performance through enhanced design | Superior protection against electromagnetic interference | UTP in office spaces, STP in industrial settings |
| Contact Plating | 50μ gold plating (premium quality) | 50μ gold plating with enhanced corrosion resistance | Both provide excellent connectivity for gigabit speeds |
| Cable Compatibility | UTP Cat5e cables (24AWG) | STP/FTP Cat5e cables with drainage wire | Must use matching cable type for optimal performance |
| Performance | 100MHz, 1Gbps up to 100m | 100MHz, 1Gbps up to 100m (enhanced noise immunity) | Same gigabit speed, different interference handling |
| Installation | Standard punch-down tool required | Specialized tool for shield connection and grounding | UTP easier to install, STP requires more expertise |
| Cost Effectiveness | Economical solution for most applications | Premium pricing for enhanced protection | UTP for budget projects, STP for critical applications |
Ideal for modern office environments requiring 1Gbps connectivity with reliable performance for workstations, printers, and VoIP phones.
Perfect for home networks, smart home devices, and residential installations where cost-effectiveness and ease of installation are key.
Excellent for classrooms, libraries, and administrative offices in schools and universities requiring robust network infrastructure.
Suited for retail stores, point-of-sale systems, and commercial spaces where reliable connectivity is essential for business operations.
Supports 1000Mbps data transmission with 100MHz bandwidth for high-speed networking
Color-coded punch-down blocks and tool-less design for quick and professional installation
Provides excellent performance at a competitive price point for most networking needs
Gold-plated contacts ensure stable connectivity and corrosion resistance
| Parameter | Specification | Standard |
|---|---|---|
| Compatibility | Cat5e UTP cables | TIA/EIA-568-B.2 |
| Bandwidth | 100MHz | ISO/IEC 11801 |
| Data Rate | 1000Mbps (1Gbps) | IEEE 802.3ab |
| Contact Material | Phosphor bronze | Premium Quality |
| Contact Plating | 50μ gold over nickel | Enhanced Durability |
| Insertion Loss | ≤0.4dB at 100MHz | Superior Performance |
| Return Loss | ≥20dB at 100MHz | Enhanced Signal Quality |
| Operating Temperature | -40°C to +75°C | Wide Range |
Strip approximately 2cm of cable jacket, ensuring not to damage inner conductors
Follow T568A or T568B standard, straighten and align wires in correct order
Insert wires into color-coded terminals and punch down firmly with tool
Use professional cable tester to confirm proper connectivity and performance
