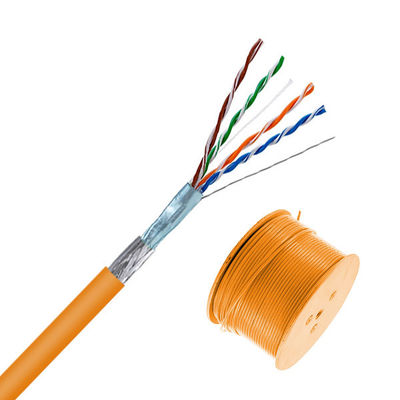

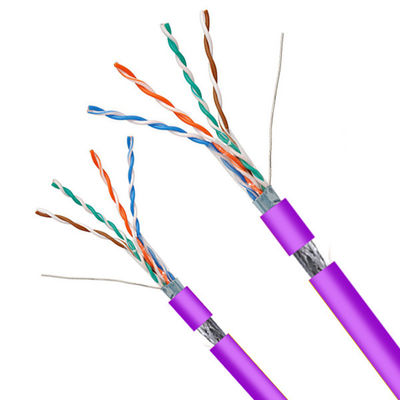

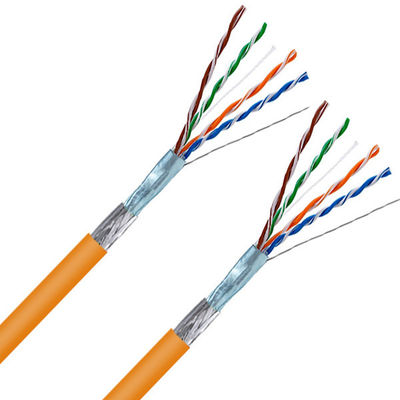

CAT5e SFTP cable features dual-layer shielding for superior EMI protection, 350MHz bandwidth, and 1Gbps data transmission, ideal for industrial and high-interference environments.
Premium shielded networking solution with SFTP design featuring dual-layer shielding for superior EMI protection in high-interference environments.
| Specification | Value |
|---|---|
| Category | CAT5e SFTP |
| Conductor Material | 100% Oxygen-Free Copper (OFC) |
| Conductor Size | 24 AWG (0.51mm) |

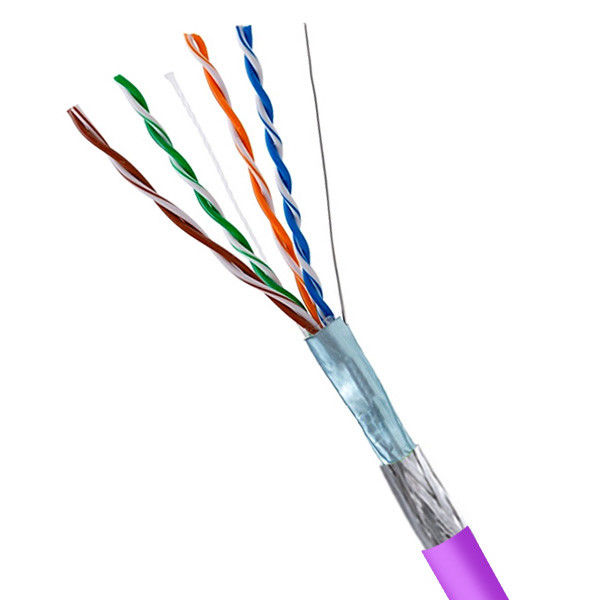

| Shielding | SFTP (Screened Foiled Twisted Pair) - Overall braid + individual pair foil |
| Jacket Material | PVC or LSZH (Optional) |
| Cable Diameter | 6.8mm |
| Color Options | Black, Blue, Gray, Yellow |
| Parameter | Value |
|---|---|
| Bandwidth | 350 MHz |
| Data Transfer Rate | 极狐Up to 1 Gbps (1000 Mbps) |
| Max Distance | 100 meters (328 feet) |
| Impedance | 100Ω ±10% |
| Propagation Delay | ≤ 548 ns/100极狐 m |
| Specification | |
|---|---|
| Connector Type | RJ45 (8P8C) with Metal Shield |
| Contact Plating | 50μ" Gold Plating |
| Shielding | Fully Shielded for Complete Grounding |
| Insertion Cycles | ≥ 1000 cycles |
| Characteristic | Value |
|---|---|
| NEXT (Near-End Crosstalk) | ≥ 35.3 dB @ 100 MHz |
| Insertion Loss | ≤ 20.8 dB @ 100 MHz |
| Return Loss | ≥ 16.0 dB @ 100 MHz |
| Shielding Effectiveness | ≥ 55 dB @ 100 MHz |
| Delay Skew | ≤ 45 ns/100m |
-20°C to +75°C
(-4°F to +167°F)
Up to 95% RH
Non-Condensing
55dB Shielding
Industrial Grade
High Flexibility
Minimum Bending Radius: 4x Diameter
Perfect for factory automation systems, PLCs, and robotic equipment with high EMI interference.
Ideal for medical imaging equipment, patient monitoring systems, and hospital networks requiring EMI protection.
Essential for audio/video broadcasting equipment, recording studios, and production facilities.
Critical for scientific instruments, data acquisition systems, and sensitive measurement equipment.
High-density server environments where maximum EMI protection and signal integrity are crucial.
Railway signaling, airport systems, and traffic control networks with high EMI environments.
TIA/EIA-568
RoHS Compliant
UL Listed
ISO/IEC 11801
