CAT5 UTP cable provides cost-effective 100Mbps Ethernet connectivity with 100MHz bandwidth, perfect for basic home and office networks.
Cost-effective unshielded twisted pair solutions: CAT5 for 100Mbps networks and CAT5e for gigabit speeds, perfect for various networking environments.
| Specification | Value |
|---|---|
| Standard | TIA/EIA-568-B.2 (CAT5e) |
| Conductor Material | 100% Pure Copper (24 AWG) |
| Conductor Size | 24 AWG (0.51mm) |

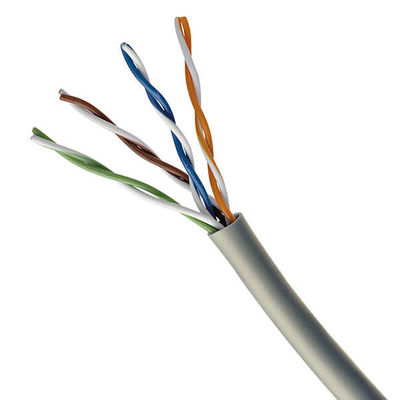

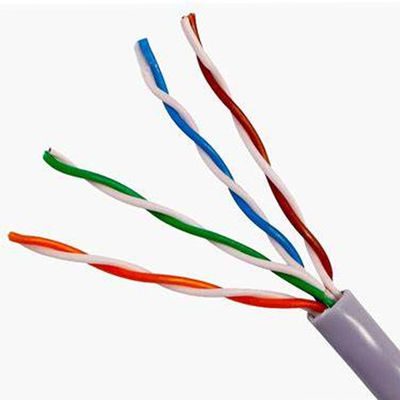

| Shielding | UTP (Unshielded Twisted Pair) |
| Jacket Material | CMR Rated PVC |
| Cable Diameter | 5.2mm - 5.6mm |
| Color Options | Blue, White, Gray, Black |

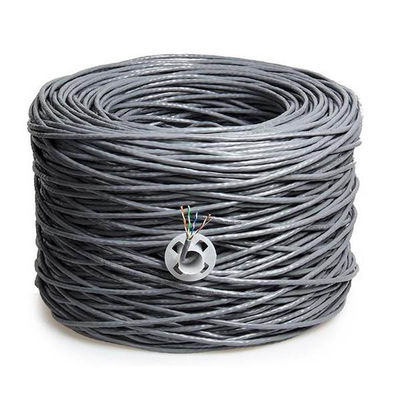

| Standard Length | 1000ft (305m) Spool |
| Parameter | CAT5 | CAT5e |
|---|---|---|
| Bandwidth | 100 MHz | 350 MHz |
| Data Transfer Rate | Up to 100 Mbps | Up to 1 Gbps |
| Max Distance | 100 meters (328 feet) | |
| Impedance | 100Ω ±15% | |
| Propagation Delay | ≤ 548 ns/100m | |
| Delay Skew | ≤ 45 ns/100m | |
| Feature | Specification |
|---|---|
| Connector Type | RJ45 (8P8C) |
| Contact Plating | 50μ" Gold Plating |
| Insertion Cycles | ≥ 750 cycles |
| Shielding | UTP (Unshielded) |
| Boot Type | Standard Boot |
| Characteristic | CAT5 @ 100MHz | CAT5e @ 100MHz |
|---|---|---|
| NEXT (Near-End Crosstalk) | ≥ 32.3 dB | ≥ 35.3 dB |
| Insertion Loss | ≤ 22.0 dB | ≤ 22.0 dB |
| Return Loss | ≥ 12.0 dB | ≥ 12.0 dB |
| PS-NEXT (PowerSum) | ≥ 29.3 dB | ≥ 32.3 dB |
| ACR (Attenuation-to-Crosstalk) | ≥ 7.0 dB | ≥ 10.0 dB |
Perfect for connecting computers, smart TVs, and routers. CAT5 supports basic 100Mbps networks, while CAT5e enables gigabit speeds for modern homes.
Ideal for office workstations, printers, and network equipment. CAT5 handles basic office needs, CAT5e supports high-speed business applications.
Suitable for connecting security cameras and DVR systems. CAT5 works with standard resolution cameras, CAT5e supports HD and megapixel cameras.
CAT5 is ideal for older network equipment, telephone systems (VoIP), and basic 100Mbps Ethernet connections in traditional environments.
CAT5e provides stable connections for online gaming and HD video streaming. CAT5 can handle basic streaming but may limit performance.
CAT5 is commonly used for telephone and VoIP installations, providing reliable voice communication infrastructure.
TIA/EIA-568-B.2
RoHS Compliant
CE Certified
CMR Rated
ISO/IEC 11801
